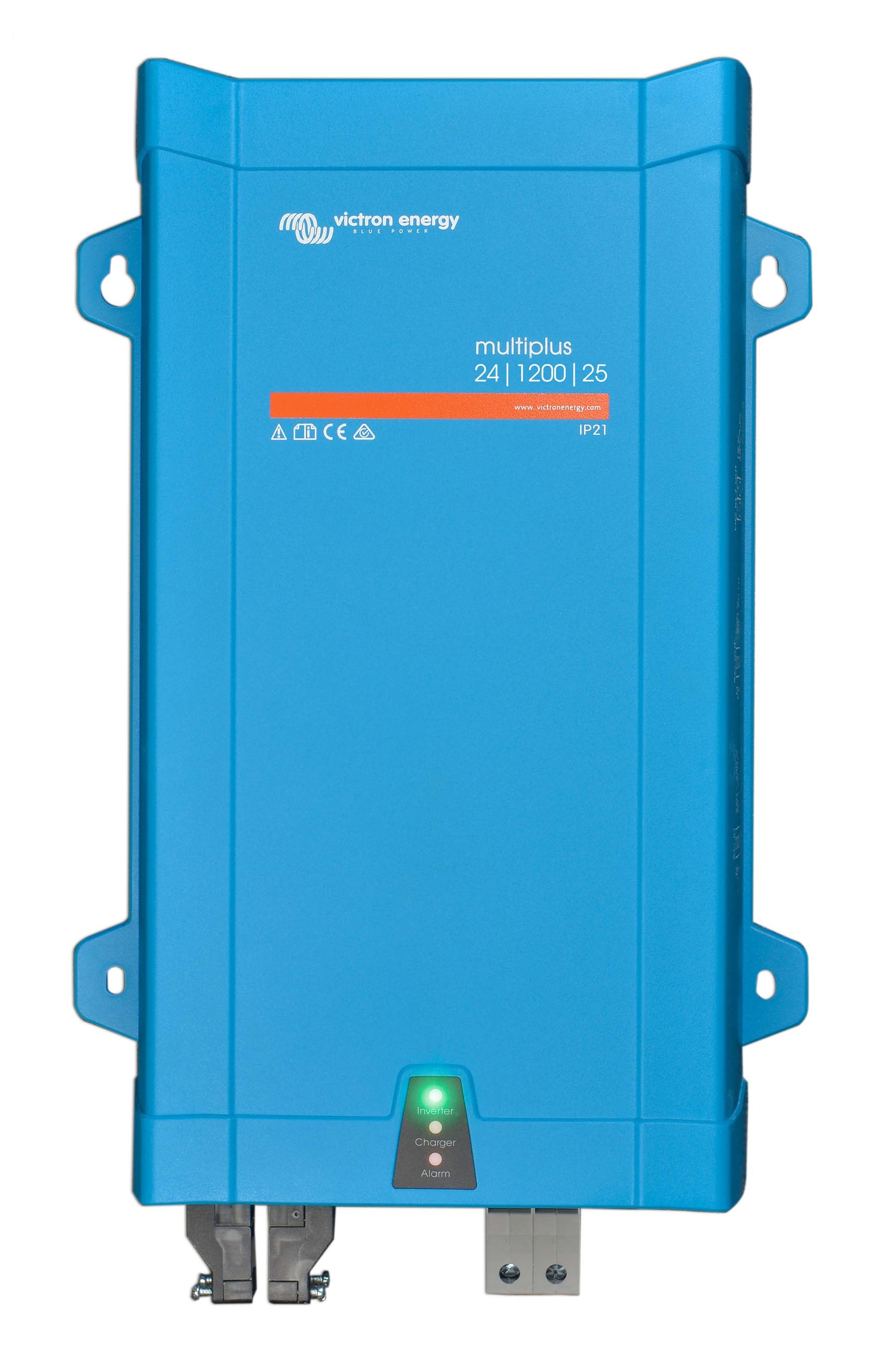

Victron Engery MultiPlus 24V 500VA to 5000VA

MultiPlus 24V 500VA to 5000VA

Models:

• MultiPlus 24/500/10-16 230V

• MultiPlus 24/800/16-16 230V

• MultiPlus 24/1200/25-16 230V

• MultiPlus 24/1600/40-16 230V

• MultiPlus 24/2000/50-32 230V

• MultiPlus 24/3000/70-50 120V

• MultiPlus 24/3000/70-16 230V

• MultiPlus 24/3000/70-50 230V

• MultiPlus 24/5000/120-100 230V

Comprehensive and flexible in use

Since it also has a fast 16A transfer switch in addition to the inverter and charger, it is an ideal inverter for the areas of mobile homes, boats or yachts and the grid-connected area of uninterruptible power supply in the event of grid fluctuations or blackouts. Also for use in grid-connected self-consumption systems that only need power from the supplier when the battery power is no longer sufficient, or as a UPS solution, in which the multiplus kicks in if the power from the network operator suddenly fails, thus ensuring an uninterrupted power supply.


Massive performance expansion possible

In addition to being connected in parallel, three units of the same model can be configured for three-phase output. Up to six sets with three units can be connected in parallel to achieve a huge 75 kW / 90 kVA inverter and over 2,000 A charging capacity (calculated with the 5000 version).

PowerControl - Working with limited generator power, limited shore or grid power

The Multiplus from Victron Energy is a very powerful battery charger. Therefore it takes a lot of power from the generator or the shore power supply (almost 10A per 5kVA Multi at 230 VAC). The maximum amount of mains or generator current to be drawn can be set with the Multi Control remote control panel. The MultiPlus then takes other connected AC consumers into account and only uses the electricity that is €œleft over € for charging. This prevents the generator or shore power connection from being overloaded.


PowerAssist - "performance increase" of generators and shore connection support

With this function, the PowerControl principle takes on a new dimension. It enables the multiplus to support under-interpreted alternative sources. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated for by energy from the battery.

BackUp system: alternating current even in the event of a power failure

The Multiplus can be used with non-grid-connected and grid-connected PV systems as well as with other alternative energy systems. Software is available to detect a power failure.


Simple system configuration

If settings need to be changed on a stand-alone device, this can be done in a matter of minutes using a DIP switch setting procedure.
Three-phase systems connected in parallel can be configured with the VE.Bus Quick Configure and VE.Bus System Configurator software.

On-site monitoring options and control

There are several options available: Battery monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).


Remote monitoring and control

Victron Ethernet Remote, Victron Global Remote and the Color Control Panel enable remote maintenance and remote monitoring of the MultiPlus. In addition, the system data can be saved and viewed free of charge on the VRM (Victron Remote Management) website.

Remote configuration

If systems with a color control panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.

You can find the list of compatible batteries here.
