Victron Energy BMV-712 Smart - Battery Monitor with Bluetooth

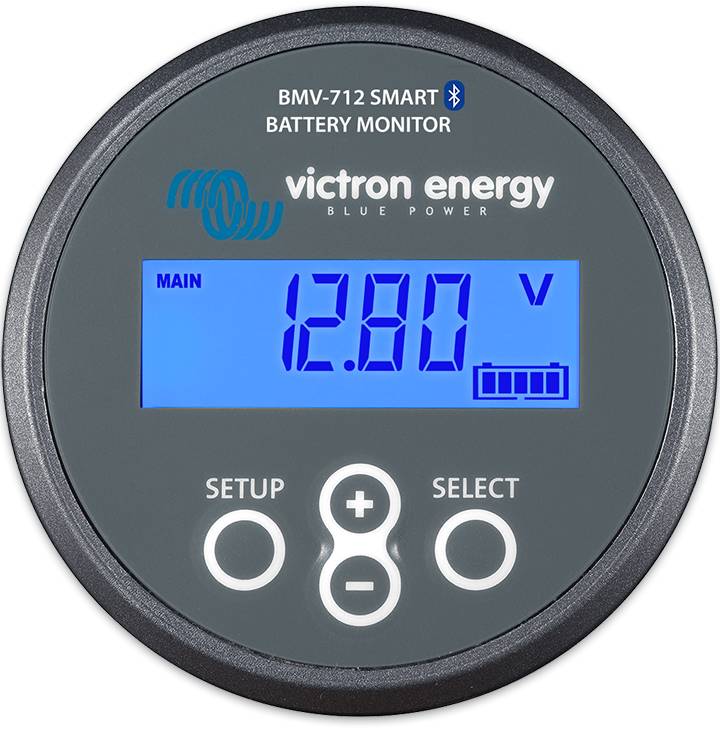

Victron Energy BMV-712 Smart Battery Monitor

The core function of the Victron BMV-712 Smart battery monitor is to calculate the amp-hours consumed and the state of charge of a battery.

With built-in Bluetooth

With its built-in Bluetooth, the Victron BMV 712 Smart is ready for the age of the "Internet of Things" (IoT).
Most other Victron Energy products also feature Bluetooth functionality.
Wireless communication between products simplifies system installation and improves overall performance.

Downloading the Victron Bluetooth app

With a smartphone or another Bluetooth-enabled device you can...

• adjust the settings,
• have all important data displayed on one screen,
• view historical data, and
• update to the latest software whenever new features become available.

Easy installation of the BMV-712 Smart

All electrical connections are made using the PCB connector on the current shunt. The shunt is connected to the battery monitor via a standard RJ12 telephone cable.

Included in the scope of delivery: RJ12 cable (10 m) and battery cable with fuse (2 m); no further components are required. Also included are a separate front cover for a square or round display, a safety ring for rear-panel mounting and screws for front-panel mounting.

Mid-point voltage monitoring

A damaged cell or a damaged battery can destroy an entire large, expensive battery bank. When batteries are connected in series, measuring the mid-point voltage can generate a timely warning. Please also refer to the BMV manual, section 5.2, for further information.

Victron Energy recommends the Battery Balancer (BMS012201000) to maximise the lifespan of series-connected lead-acid batteries.

Very low current draw from the battery

Current consumption: 0.7 Ah per month (1 mA) at 12 V and 0.6 Ah per month (0.8 mA) at 24 V

Lithium-ion batteries in particular have almost no remaining capacity left when discharged down to the low-voltage cut-off.

After low-voltage cut-off, the reserve capacity of a lithium-ion battery is approximately 1 Ah per 1000 Ah of battery capacity. The battery is damaged if this remaining reserve capacity is drawn from it. A residual current of, for example, 10 mA can damage a 200 Ah battery if the system is left in the discharged state for over 8 days.

Bistable alarm relay

Prevents increased current draw in the event of an alarm.

Further features

• Battery voltage, current, power, amp-hours consumed and state of charge
• Remaining time at the current discharge rate
• Programmable visual and audible alarm
• Programmable relay to switch off non-essential loads or, if needed, to start a generator.
• A 500 amp quick-connect shunt and a connection set.
• Shunt capacity selectable up to 10,000 amps.
• VE.Direct communication port
• Stores a wide range of historical data that can be used to assess usage patterns and battery condition.
• Wide input voltage range: 6.5 – 70V
• High current-measurement resolution of 10 mA (0.01A)
• Additional input for measuring voltage (of a second battery), temperature or mid-point voltage, along with associated alarm and relay settings.
