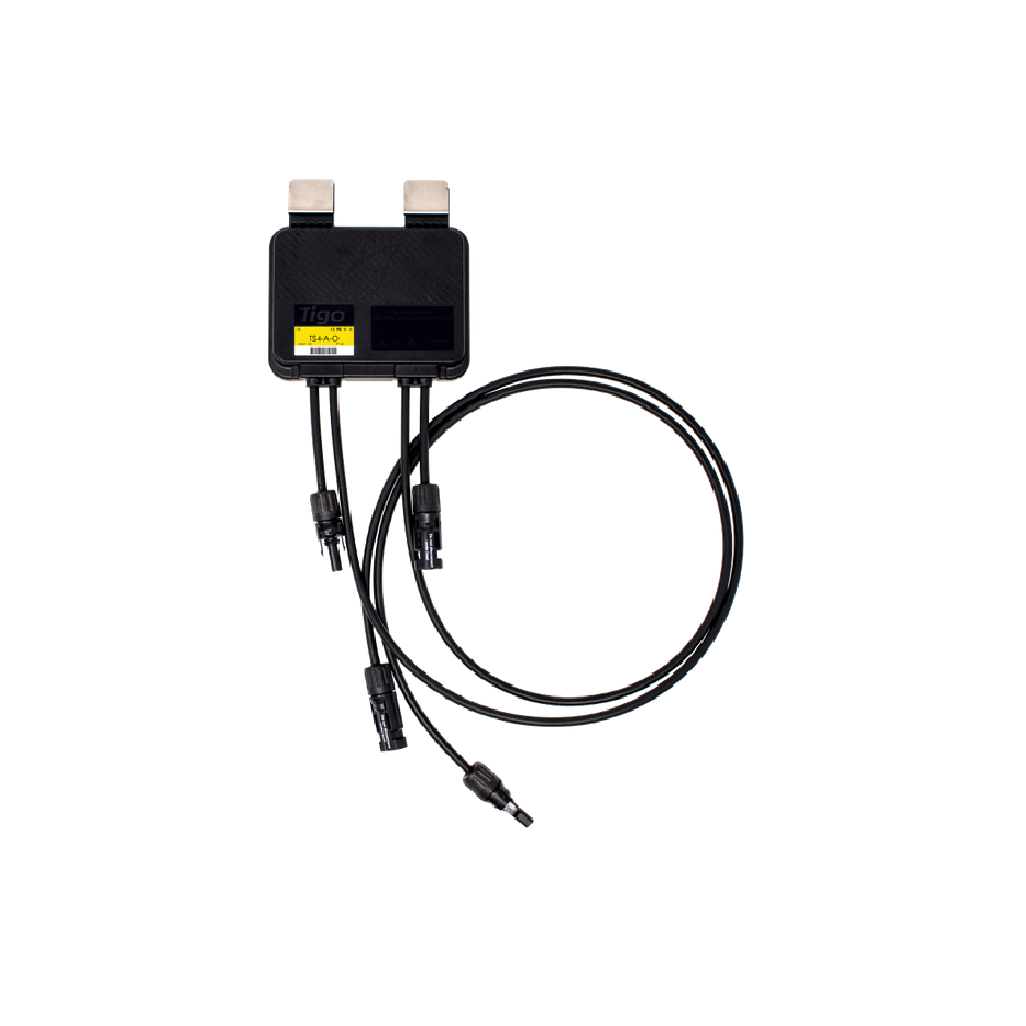

TIGO TS4-A-O (YELLOW) T1 Optimizer

Maximize the yield of your photovoltaic system with the Tigo®

TIGO® TS4-A-O T2 1000V TUV, 1.2M Cable, MC4

• Do you have problems with partial shading of your solar modules?

• Do you have different module orientations?

Here is the optimal problem solver for you in both cases!

The innovative SMA / Tigo TS4-A-O modular technology as a retrofit variant brings here the ultimate solution. As a solar module optimizer, this ensures maximum energy yields. For shading, switching off, different module orientations or other challenges of your photovoltaic system, the Tigo TS4-A-O is rather a smart module technology in every respect. Because in contrast to the previously offered optimizer systems, not every single module in your system has to be equipped with it. This means lower investment and installation costs for you. The installed inverter in your plant does not need to be from the manufacturer SMA. Thus, a use even with a variety of manufacturers - components in the existing system is possible.



Here in the video, the manufacturer explains how the system is structured:



In summary why you should definitely buy the Tigo / TS4-A-O as a power optimizer:



• Lower investment costs compared to conventional systems
• Reduced installation costs
• Increase in yield with partial shading and different module orientation
• Compatible with all standard photovoltaic modules
• Lower probability of failure due to less required components
• Long service life ensured by demand-optimized bypass operation



A professional solution that is coordinated!



With the TS4-A-O platform there are the following possibilities or consecutive functions:



• monitoring
• shutdown
• optimization



The entire PV system can thus be monitored at the module level. In the case of a fault, such as due to contamination, this can be indicated by the monitoring and thus also be remedied promptly. With the shutdown function, it is possible to implement a shutdown at the module level. The optimizing function is ideal for optimizing the PV system. The problem of partial shading or the condition of different module orientation are thus optimized and the entire PV system is increased in the total power output.

If you want a holistic monitoring for your PV system and thus want to ensure complete monitoring and shutdown, then you need the separately available communication unit Cloud Connect Advanced and the gateway (GTWY) with it.

Together, SMA and Tigo Energy offer a high-quality and flexible solution to tickle the maximum out of your photovoltaic system!



Manufacturer: SMA

Warranty: 25-year manufacturer's warranty





Downloads:

Datasheet SMA TS4-A-O T1 (PDF, 468 KB)

Installation TS4-A-O T1 (PDF, 1 MB)
