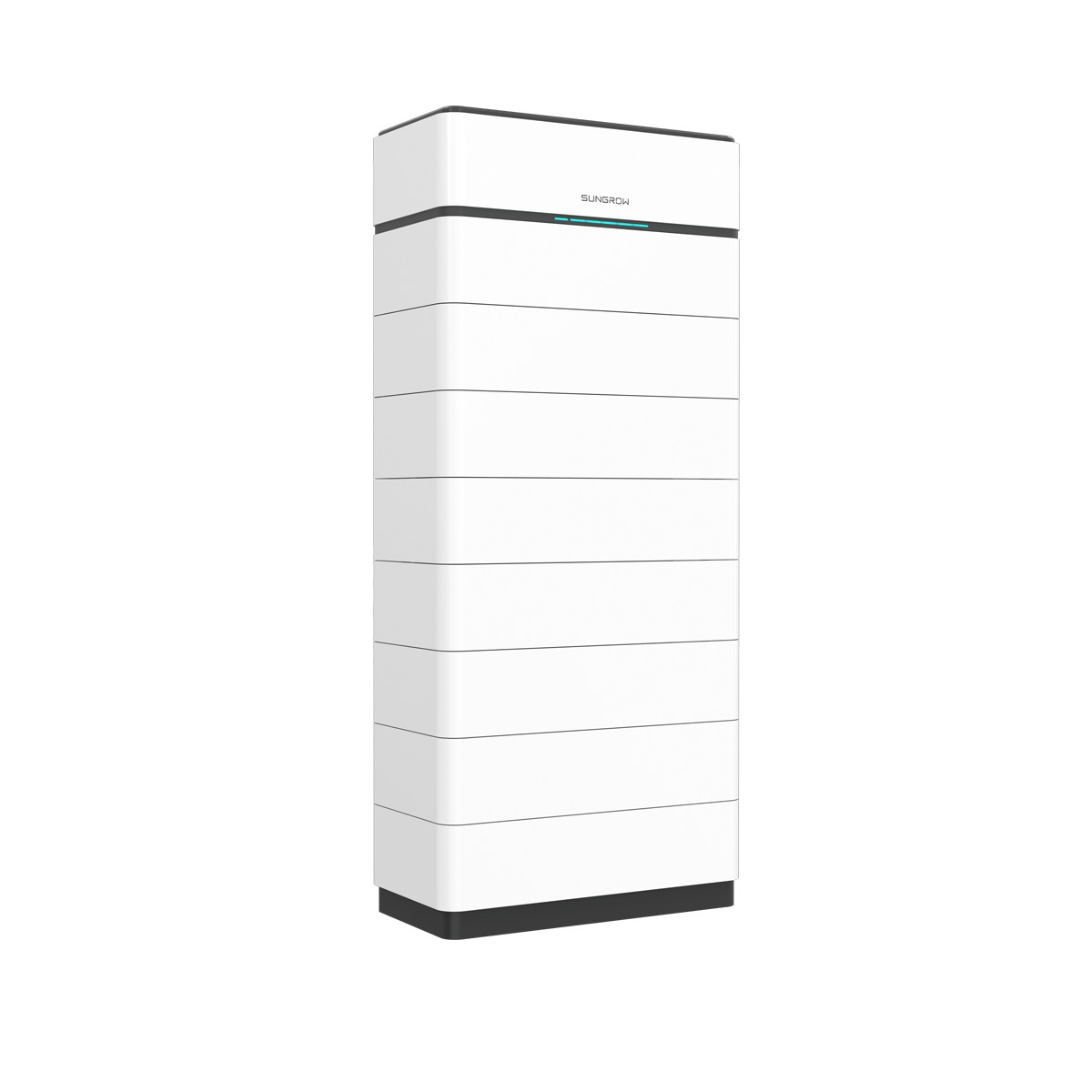

Sungrow High-Voltage PV Storage SBH100 to SBH400 | from 10 to 40 kWh

Scope of Delivery

• 2 - 8 x Sungrow SBH 5.0 kWh battery module
• 1 x Sungrow SBH base, top cover & switch box
• Connection cable to the inverter
• Documentation and further accessories

Complete - all required cables are included!

Product Highlights and Technical Details

• Unlimited in time and modularly expandable up to 40 kWh (with max. 8 modules)
• Up to a unique 100% usable energy (adjustable)
• Slim design & plug-and-play without cables allow easy installation by a single person
  Impressive storage capacity of 5 kWh per module
• The inverter automatically detects the PV storage after installation & integrates it into the system
• Up to 50 A charge and discharge current in continuous operation, a unit of 8 modules delivers up to 28 kW
• Multi-stage protection concept including over- and undervoltage protection, overcurrent protection and temperature protection
• 10-year product warranty
• 45 kg per module
• Charging: 0-50 °C | Discharging: 20-50 °C
• Please refer to the datasheet for further technical details.

Please note:

• The SBH PV storage is only compatible with the SHT series hybrid inverters (15 to 25 kW).
• Parallel connection of towers is not possible in the European market.

Detailed Description - Sungrow PV Storage SBH

The SBH PV storage from Sungrow is an outstanding energy storage system that impresses with its exceptional performance and flexibility. Each module offers an impressive storage capacity of 5 kWh, ensuring particularly high performance per unit. The storage system is unlimited in time and modularly expandable, so up to 40 kWh of storage capacity can be achieved by simply adding up to eight modules.

Simplicity & efficiency: user-friendly design and installation

A unique feature of the SBH is the ability to use up to 100% of the stored energy, which can be individually adjusted. This maximum energy utilization is a decisive advantage that, combined with the low weight of only 45 kg per module and a slim design, enables easy installation. Thanks to the plug-and-play functionality, which requires no additional cables, installation can even be carried out by a single person.

The system's inverter automatically detects the PV storage after installation and seamlessly integrates it into the existing energy system. With a charge and discharge current of up to 50 A in continuous operation and a power output of up to 28 kW for a unit of eight modules, the SBH offers a powerful solution for self-consumption and the storage of solar energy.

Safety and reliability: comprehensive protection and long service life

The SBH PV storage is also equipped with a multi-stage protection concept that includes over- and undervoltage protection, overcurrent protection and temperature protection. This ensures safe operation and a long service life. In addition, Sungrow offers a 10-year product warranty, underlining the reliability and quality of the system.

The storage system operates over a wide temperature range, with charging possible between 0 and 50 °C and discharging between 20 and 50 °C, ensuring high flexibility and readiness for use under various ambient conditions.

The SBH PV storage from Sungrow is therefore an excellent choice for anyone looking for an efficient, flexible and safe energy storage system.
