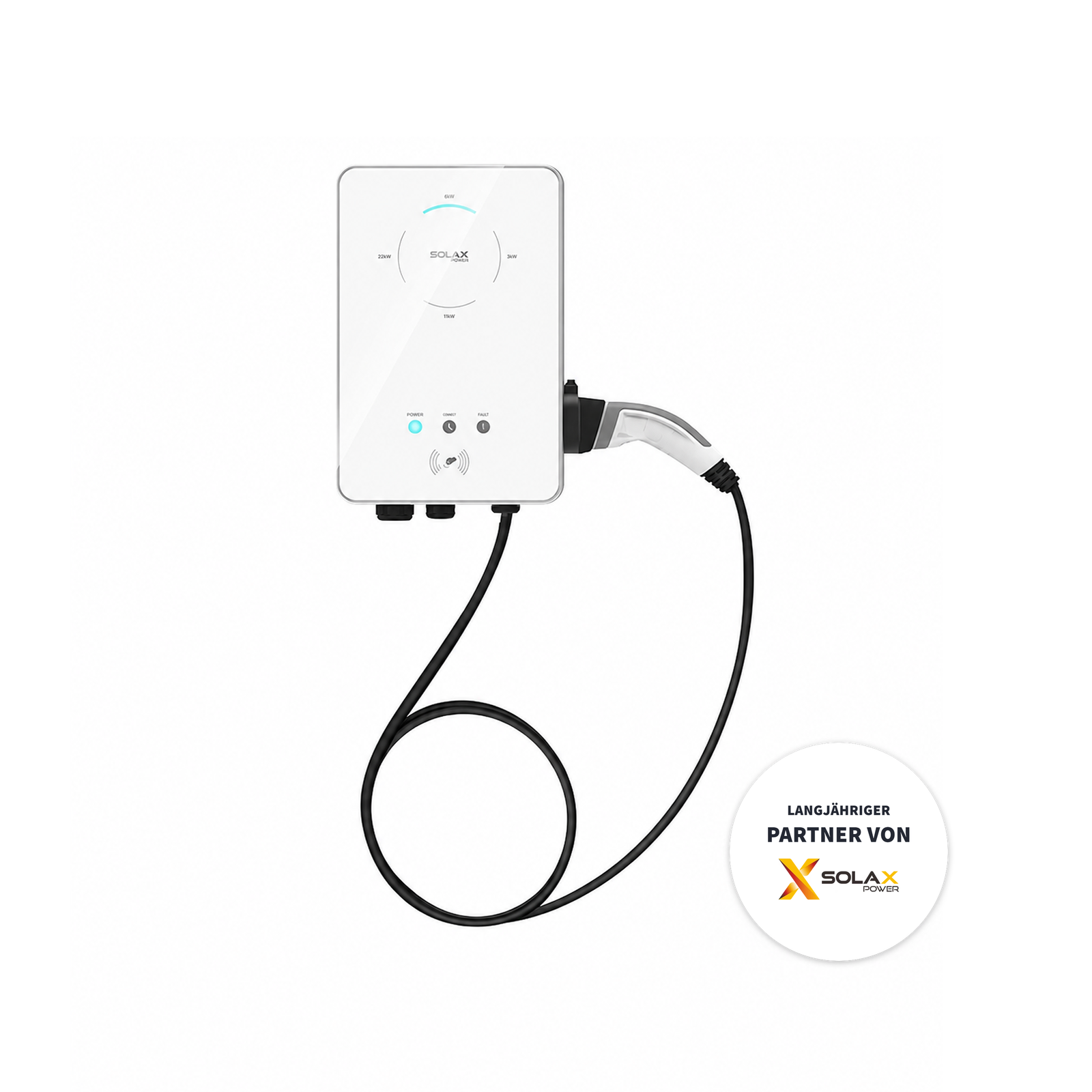

SolaX Power Smart EV Charger
The SolaX Smart EV Charger is the perfect solution for your electric vehicle charging needs.
With a variety of impressive features, SolaX has certainly thought of everything to enhance your charging experience.
One of the standout features of the SolaX Smart EV Charger is the flexibility in installation.
You have the choice between a traditional plug or socket outlet to meet your individual requirements.
Your safety is a top priority. The SolaX Smart EV Charger comes with a built-in 30mA Type A RCD and 6mA DC protection to ensure maximum safety during the charging process.
And the best part is, no grounding rod is required, thanks to the integrated PEN protection.
Communication with the SolaX Smart EV Charger is absolutely secure and private. Thanks to TLS-based encrypted communication, you can charge worry-free.
Installation of the SolaX Smart EV Charger is incredibly easy and can be done both indoors and outdoors to suit your individual needs.
Even more impressive is the ability to create a smart photovoltaic, storage, and electric vehicle charging system by having the SolaX Smart EV Charger communicate with the Solaxpower inverter.
Want to use green energy? No problem! The SolaX Smart EV Charger is compatible with 100% green energy generated from your own solar or wind energy production.
The integrated RFID function offers convenient authentication and control options for charging.
With SolaX's user-friendly app and website, you can monitor and configure your Smart EV Charger remotely, all from your smartphone or computer.
The SolaX Smart EV Charger also features intelligent dynamic load balancing control to ensure your charging process is efficient and cost-effective.
And if you want to further reduce your charging costs, you can simply set timers to charge during peak and off-peak times.
Discover the future of smart and environmentally friendly electric vehicle charging with the SolaX Smart EV Charger.
X3-EVC-22K Specifications
| Specification | Value |
|---|---|
| Phases/Lines | Three-phase |
| Voltage [V] | 230/400; 3/N/PE |
| Frequency [Hz] | 50/60; ±5 |
| Voltage [V] | 230/400; 3/N/PE |
| Current [A] | 16 |
| Power [kW] | 22 |
| Wireless Module | YES |
| RS485 | YES |
| RFID | Optional |
| OCPP 1.6 (JSON) | Optional |
| LCD Screen | Optional |
| CT Clamps | ×3 |
| Housing Material | Plastic/Metal |
| Installation Method | Wall-mount |
| Charging Outlet | Type P (Charging cable with plug)/Type S (Socket-outlet) |
| Cable Length [m] | 6.5 |
| Operating Temperature [°C] | -30 ~ 50 |
| Working Humidity [%] | 5%~95% without condensation |
| Working Altitude [m] | < 2000 |
| Degree of Protection | IP65 |
| Application Site | Indoor/Outdoor |
| Cooling Concept | Natural cooling |
| Dimension(WxHxD) [mm] | 265*370*155(for type S) |
| Net Weight [kg] | 10.5(for type P) |
| 30mA Type A RCD (EN 61008) + 6mA DC protection (EN 62955) | YES |
| IEC 61851-1:2017, IEC 62196-2:2016 | YES |
| Battery | Multiple Protection |
| Integral Earth Leakage Protection | YES |
| Integral Encrypted Communication | YES |
| Safety Standard | Built-in PEN fault technology |
| Warranty [years] | 5 |
