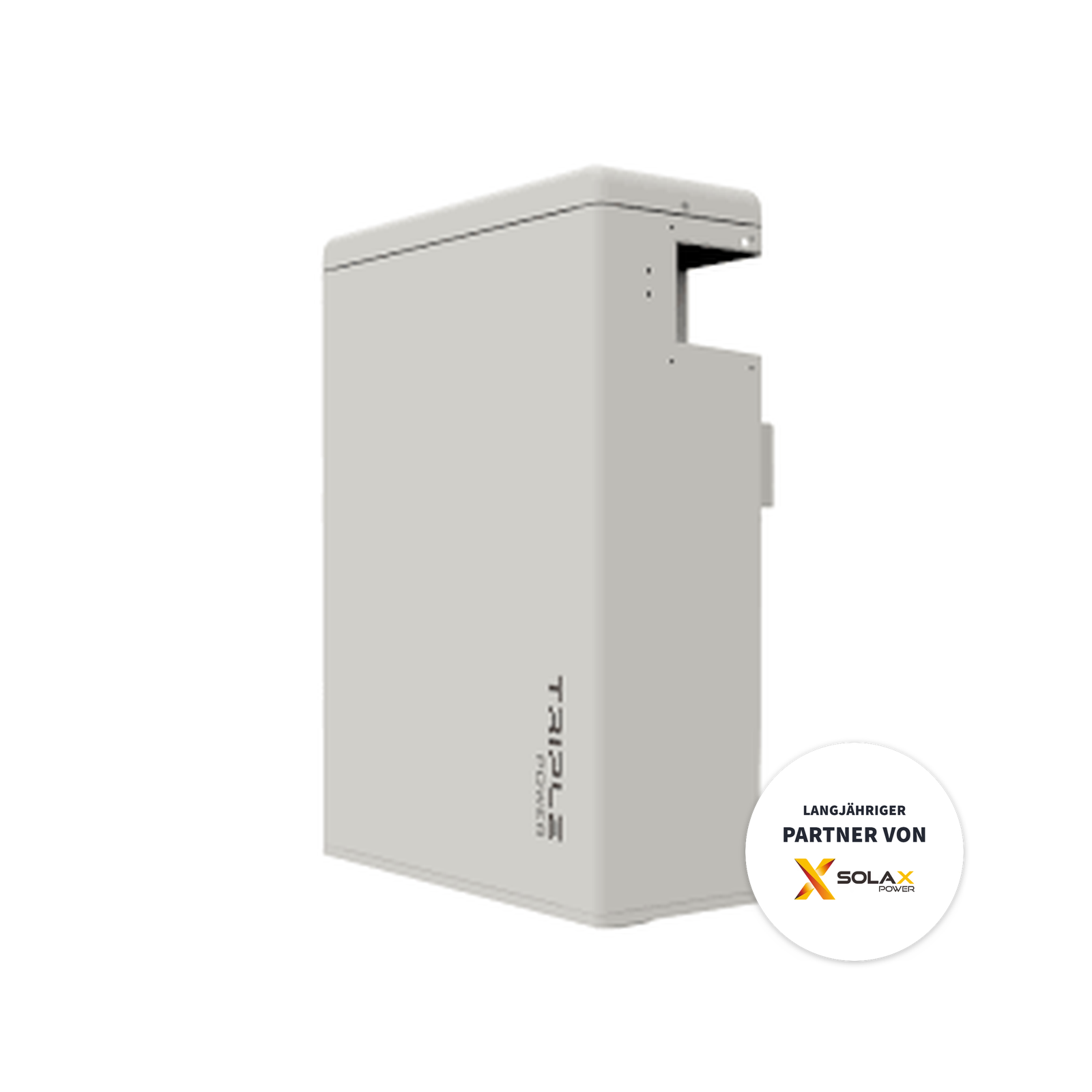

SolaX Power T-BAT H 5.8 Slave Pack H11550 V2 | 5.8 kWh

SolaX Power T-BAT H 5.8 Slave Pack H11550 V2

• Safe LiFePO4 battery chemistry
• 90% depth of discharge
• More than 6,000 cycles
• IP55 protection
• Floor or wall mounting
• Low self-consumption
• Quick installation
• No toxic heavy metals or corrosive substances

When connecting the SolaX T-BAT H 5.8 battery, ensure that the inverter's permitted voltage range is maintained.

X1 Hybrid systems require one master battery and support up to two slave batteries.

X3 Hybrid systems require at least one master battery and one slave battery.

Each string supports one master pack and up to three slave packs.

All modules in a string must be from the same generation. When expanding an existing system, the difference in state of charge must not exceed 5%.

Manufacturer: SolaX. Limited 10-year warranty.

Technical data

• Nominal capacity: 5.8 kWh
• Usable capacity: 5.1 kWh
• Standard power: 2.9 kW
• Maximum power: 4.0 kW
• Nominal voltage: 115.2 V
• Maximum charging current: 35 A
• Maximum discharging current: 35 A
• Dimensions (W × D × H): 474 × 193 × 647 mm; weight: 68.5 kg
