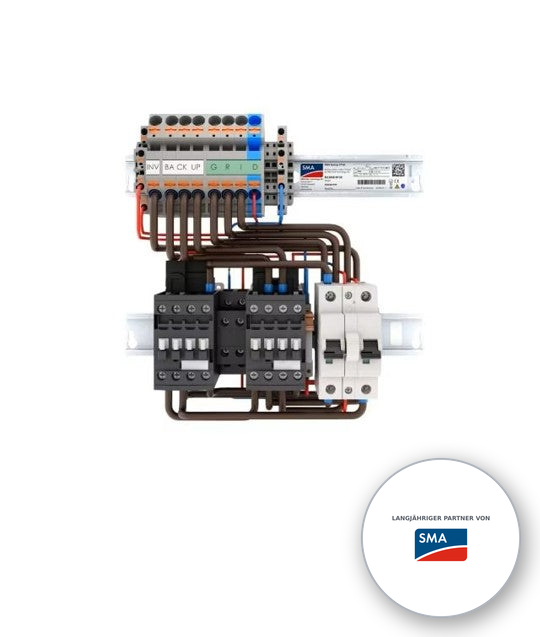

SMA Backup 3P Kit for the Sunny Boy Smart Energy

SMA Backup 3P Kit | Backup Power Capable | 1-/3-Phase | DIN Rail Mounting

Scope of delivery

• SMA Backup 3P Kit
• Installation and operating instructions

Your advantages at a glance

Automatic backup power supply for all household phases:
The SMA Backup 3P Kit is the perfect solution for a low-interruption, automatic backup power supply with the Sunny Boy Smart Energy hybrid inverter. Thanks to patented phase coupling, single-phase loads can be supplied on all three phases of the house – without any intervention and without needing a three-phase connection.

• Phase coupling with system:
  One phase is enough – the SMA system distributes single-phase backup power across all three house phases. This keeps important devices such as the refrigerator, internet or heating running.
• Fast automatic switchover:
  In the event of a power outage, disconnection from the grid and the transition to backup power operation happen automatically – within seconds and without any manual action.
• Minimal self-consumption:
  In grid-connected operation, the system requires less than 1 watt – ideal for energy-efficient installations.

Technical highlights

The SMA Backup 3P Kit combines innovative technology with practical ease of installation. It is installed directly in the existing meter cabinet and requires no additional structural changes.

• Phase coupling for 1-/3-phase supply
• Single-phase Sunny Boy Smart Energy supplies loads on all three phases
• Max. back-up fuse rating: 63 A
• Mounting: DIN rail mounting with push-in terminals
• System consumption < 1 W in grid-connected operation
• Compatible with SMA Sunny Boy Smart Energy (SB-SExx-50, TN-C-S grid)

Grid compatibility & notes

Suitable for TN-C-S grid systems. Three-phase loads (e.g. electric cookers, instantaneous water heaters) cannot be supplied in backup power operation. The Backup 3P Kit is designed solely for supplying single-phase loads on all three house phases.

Switchover briefly explained

• Grid outage detected: The system safely disconnects the house from the grid.
• Inverter takes over: The Sunny Boy Smart Energy forms an island grid and supplies single-phase loads on all three phases.
• Grid stable again: Automatic switchback with grid synchronization.

Key features

• 1-/3-phase backup power operation through patented phase coupling
• Automatic operation in the event of a grid outage
• Easy integration in the meter cabinet (DIN rail)
• Low self-consumption: < 1 W
• Push-in terminals for easy and fast installation
• Compatible with Sunny Boy Smart Energy

Tip

The SMA Backup 3P Kit is the ideal addition for anyone who wants maximum supply security in the event of a grid outage – efficient, intelligent and easy to retrofit.
