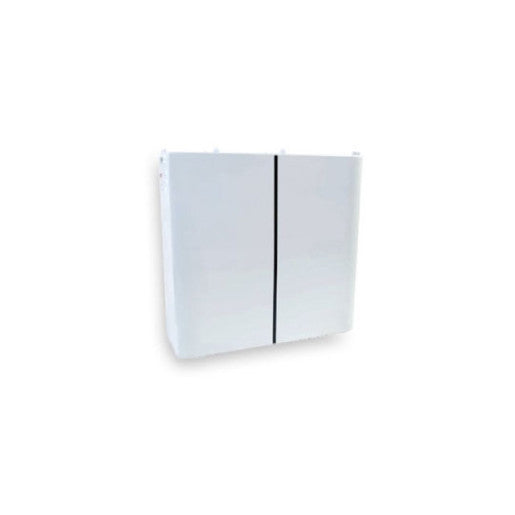

Qcells Q.SAVE BAT-G3 Battery Module

Q.HOME Q.SAVE BAT-G3 battery module

Scope of delivery:

1 × Q.SAVE battery module, 3.07 kWh
1 × connection and communication cable
1 × operating manual

The Q.SAVE battery module provides 3.07 kWh of nominal capacity and approximately 2.75 kWh of usable capacity. It is a reliable, durable option for adding battery storage to a solar system. The modular system uses lithium iron phosphate (LiFePO₄) cells and is suitable for both new installations and storage-system expansions in residential or commercial applications.

The modular design allows the system to be adapted to your energy requirements. Each string requires at least two modules and supports two to four modules, providing 6.1 to 12.3 kWh of nominal capacity. An optional parallel box allows two strings to be combined for a total capacity of up to 24 kWh. This makes Q.SAVE suitable for households with increasing electricity demand or plans for future expansion.

The Q.SAVE module combines substantial storage capacity with compact dimensions and straightforward installation. It is designed for use with the Q.VOLT HYB-G3; refer to the current Qcells compatibility list for approved combinations. The system can help increase self-consumption, cover peak loads and support compatible backup-power solutions. Its integrated battery management system supports safe and efficient operation over many years.

Qcells installation video:

Scalability:
