Premium PV System “TriPower LowVolt” | 13.16 kWp Bifacial Trina Solar Modules | 12 kW Solis Low-Volt Hybrid | 14.4 kWh Pylontech US5000 Storage & Accessories

Premium PV System “TriPower LowVolt” | 13.16 kWp Bifacial Trina Solar Modules | 12 kW Solis Low-Volt Hybrid | 14.4 kWh Pylontech US5000 Storage & Accessories

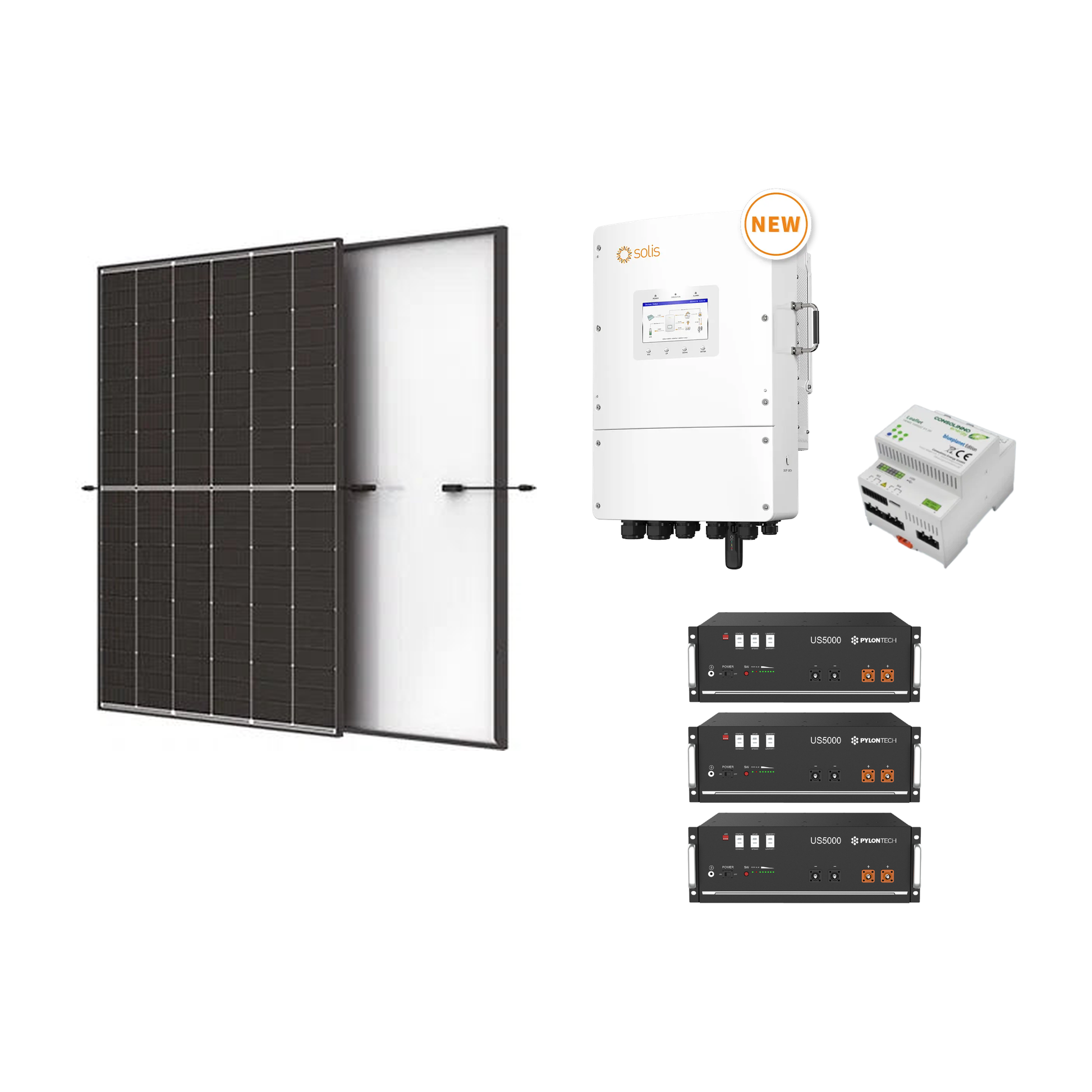

Scope of delivery:

• 28 x Trina Solar Vertex S+ 470 Wp | glass-glass solar module | black frame

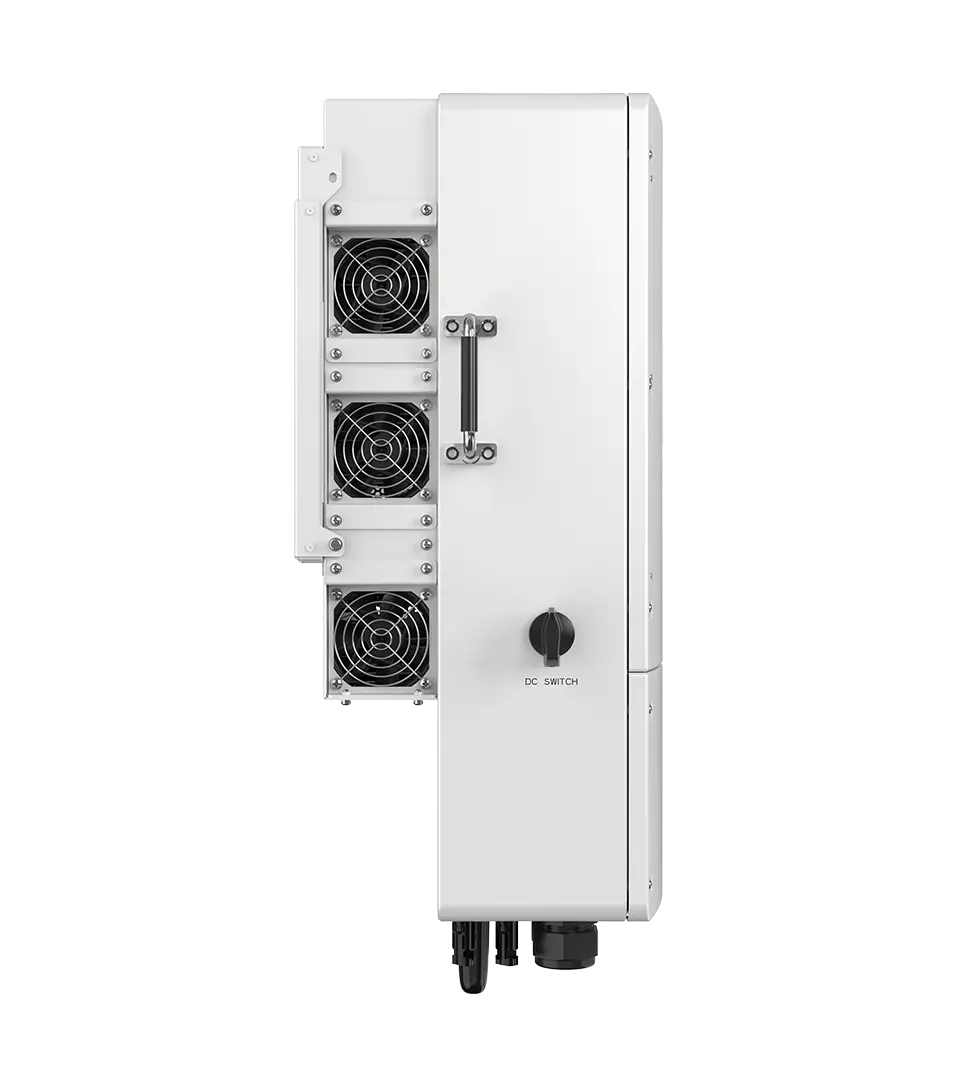

• 1 x Solis hybrid inverter S6-EH3P12K02-NV-YD-L | three-phase, for low-volt storage
• HEMS Consolinno energy manager incl. smart meter
• LAN/WiFi
• 3 x Pylontech US5000 LiFePO4 storage units | 4.8 kWh each, 14.4 kWh total
• 100 m solar cable, 6 mm², black
• 2 x Weidmüller tool-free PV connector pairs for 4–6 mm² DC main cable
• 1 x Pylontech cable set for connecting the storage to the hybrid inverter (power cable approx. 2 m, AWG 4 | communication cable approx. 2.5 m)
• Connecting cables between the storage modules (included with the US5000 modules)

The complete system is also available on request with more or fewer solar modules and with other storage sizes – just get in touch with us.

Your advantages at a glance:

The only three-phase low-volt hybrid inverter: Combines the safety and cost-effectiveness of a 48 V storage system with full three-phase supply – ideal for households with three-phase loads.

Affordable & powerful: Proven branded components from Solis, Trina and Pylontech – powerful, durable and especially cost-effective.

Solar module highlights:

• Trina Solar – top-4 manufacturer: 25-year product warranty & 30-year performance warranty
• Robust double-glass design: Increased load capacity & fire protection
• N-type solar cells: Higher yields & lower degradation
• High module efficiency: High yield on a small roof area
• Good low-light performance: More yield in the morning, evening & in cloudy conditions

Inverter highlights:

• 160% PV charging power: Efficiently store surplus energy
• 3 MPP trackers: Perfect for east/west roofs or mixed roof pitches
• Parallel connection of up to 6 units: Flexibly scalable as demand grows
• Integrated display: Status overview directly on the device
• 2 independent backup circuits: Prioritizable backup power supply without overload
• Dynamic tariff optimization via SolisCloud: Automatic charging/discharging based on electricity prices
• Heat pump control (SG-Ready): Simple surplus-power operation, optionally combinable with HEMS
• High module current (20 A): Ideal for modern high-current modules

Storage highlights:

• 95% depth of discharge (DoD): Almost full usability of the capacity
• Integrated BMS per module: Real-time monitoring for maximum safety
• Double protection at BMS level: Redundant safety against overload, short circuit & more
• Soft start: Gentle start-up of the inverter from the battery
• Easy to install: Simple plug-in system, ideal for tight utility rooms
• Up to 10-year warranty: Extendable free of charge after registration

Accessories & system components - already included

• Consolinno HEMS: The Consolinno Energy Manager (HEMS) is the perfect choice for open systems and the highest control quality. It enables intelligent connection with components from other manufacturers in the smart home and allows continuously variable, finely tuned control – far beyond simple on/off switching. It shows its full potential especially with dynamic electricity tariffs, heating systems or PV surplus utilization. Thanks to its open architecture and high “Made in Germany” data protection standards, the Consolinno HEMS is ideally suited for anyone who wants maximum flexibility and control over their energy management.
• Weidmüller PV connectors & 6 mm² solar cable: 100 m of high-quality PV cable plus tool-free PV connector pairs for smooth, standards-compliant DC wiring.

Optional accessories

DC and AC surge protection:
To protect against lightning strikes and surges, standards-compliant surge protection in accordance with VDE 0100-712 is recommended – on both the DC and AC side. In most cases, this is even mandatory. Ideal for new builds and retrofits – compact, effective and standards-compliant.
