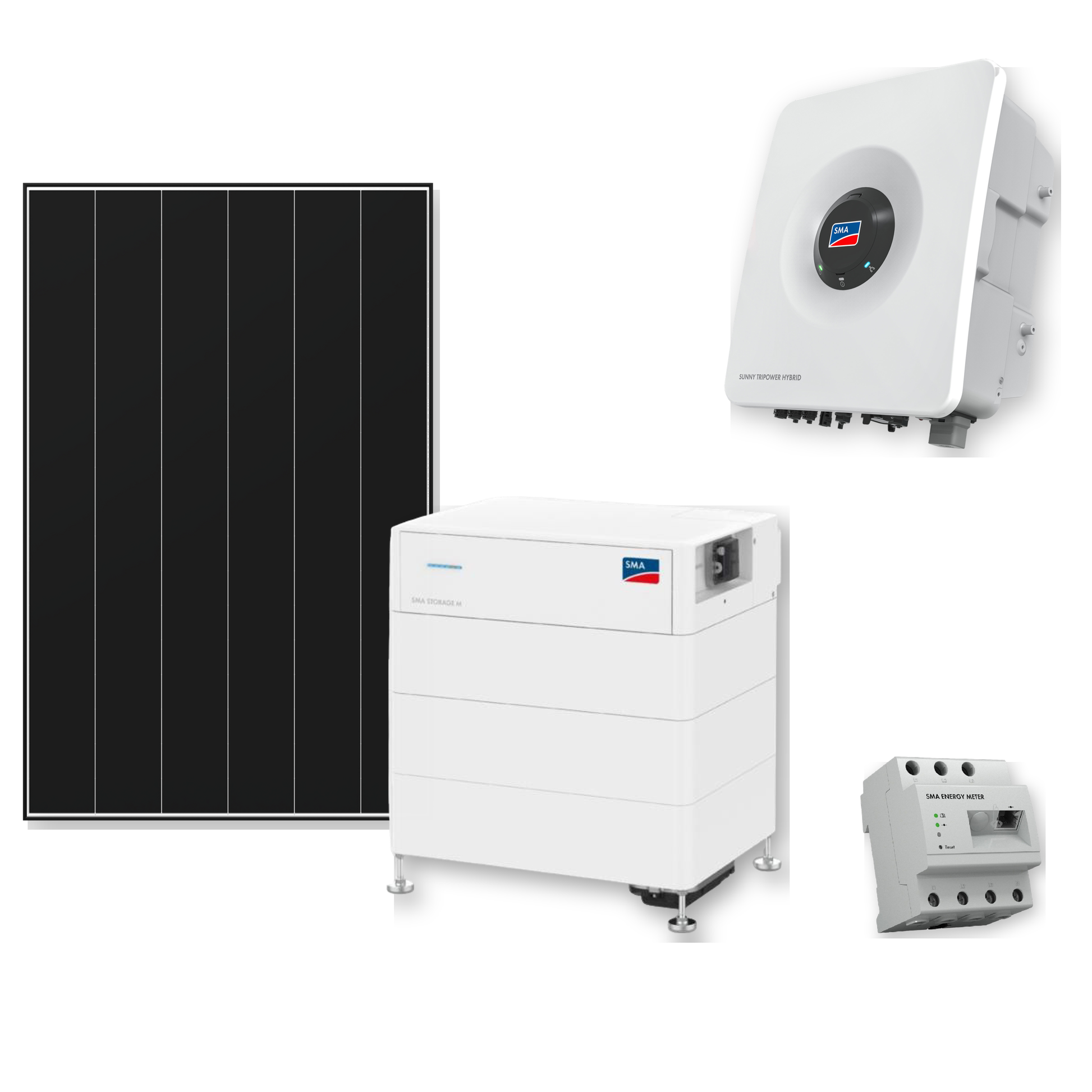

Premium PV System “German Masterclass M” | 8.82 kWp Heckert Solar Panels | 8 kW SMA Tripower Hybrid X | 12.3 kWh SMA Storage M & Accessories

Scope of delivery:

• 18 x Heckert Premium solar panel Zeus 3.0+ Performance 108 M, made in Germany | 490 Wp – bifacial, glass-glass
• 100 m solar cable 6 mm² black
• 2 x Sunclix MC4 connector pairs for 4-6 mm² for the DC main line
• SMA Sunny Tripower Hybrid X 8.0 hybrid inverter | three-phase, 3 MPP trackers, energy management integrated

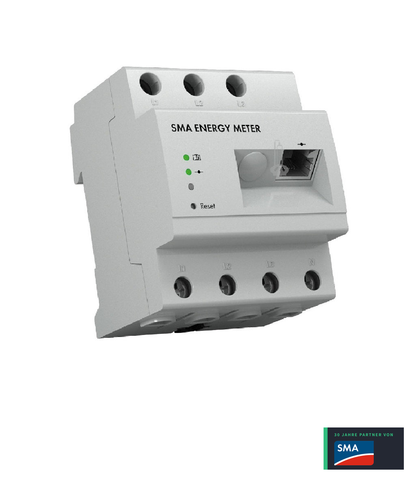

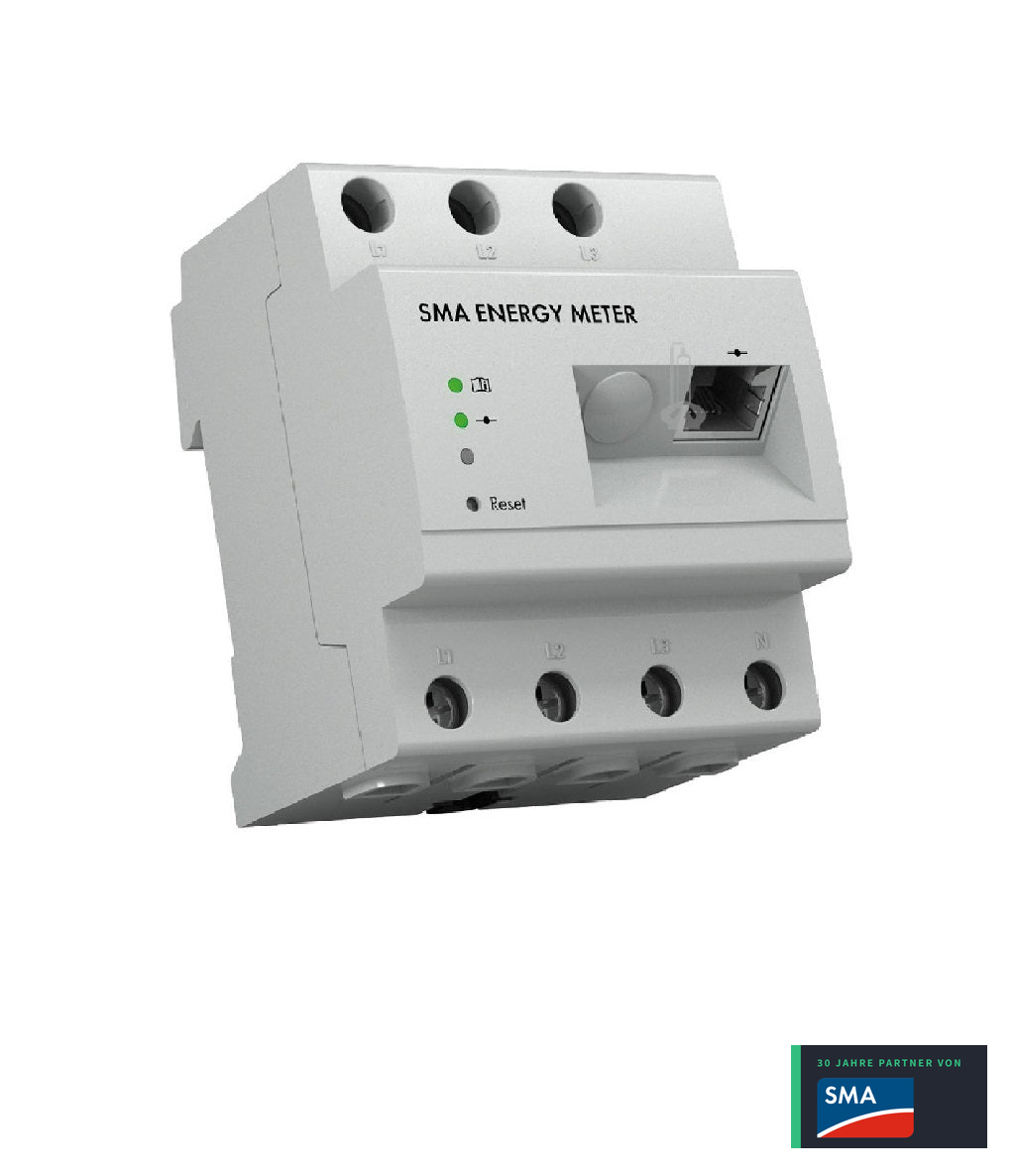

• SMA Energy Meter 2.0 for measurement at the grid connection point
• SMA Storage M PV battery, 12.3 kWh | IP66, suitable for outdoor installation
• Pre-fitted connecting cables (included in the storage package)

Delivery note: the new SMA Hybrid-X generation and the Storage M will be available from SMA's market launch on 31 July 2026 – pre-orders are possible now.

SMA system solution – reliable, from a single source: SMA stands for German engineering, durable technology and a clearly structured system design. Inverter, storage and energy management all come from SMA and are technically matched to one another. This reduces installation effort and minimises potential system faults.
Sunny Portal and the SMA Energy App keep you informed at all times. After successful registration you benefit from a 10-year manufacturer's warranty on the inverter.

Heckert solar panels Zeus 3.0+

Heckert Solar manufactures this bifacial glass-glass module using state-of-the-art TOPCon technology in Chemnitz and Langenwetzendorf – quality made in Germany.

N-type TOPCon half-cells: module efficiency of up to 22.3% and minimal degradation ensure consistently high solar yields.

Bifacial glass-glass design: transparent gaps and the PV-active rear side of the module deliver measurably higher yields – even in weak or diffuse light.

Robust double-glass module (2 x 2 mm): thermally toughened anti-reflective glass increases light absorption and reliably protects against hail and snow.

Improved temperature coefficient: stable output even at high outdoor temperatures means higher overall yields across the year.

Positive power tolerance (0/+4.99 Wp): every module delivers at least the rated output – often more.

30-year product and performance warranty: Heckert guarantees long-term yield security and product quality.

Original Stäubli EVO2A connectors: trouble-free connection, including with power optimisers.

The SMA Sunny Tripower Hybrid X – SMA's new hybrid generation

The three-phase hybrid inverter combines inverter and energy management in a single device: it coordinates generation, storage and consumption, can be planned consistently, and is commissioned in just 5 minutes via the SMA 360° app.

Flexible output: 3 MPP trackers make optimal use of up to three roof areas. The low PV input voltage from 90 V allows smaller strings per roof area – the system delivers power from early morning until dusk. Up to 5 hybrid inverters can be operated in parallel; the system simply grows with your energy needs.

Backup power for the whole building: with the optional SMA backup solution, the system continues to supply the entire building connection in the event of a grid outage. A socket for backup power to individual consumers can also be connected directly on the device.

Energy management: already integrated in the inverter

SMA Energy Maximizer: automatically optimises energy flows for the lowest possible energy costs – including with dynamic electricity tariffs. The included SMA Energy Meter 2.0 measures at the grid connection point for this purpose.

Integrated System Manager: connects up to 10 devices – a wallbox (SMA eCharger), heat pump and other components can be added at any time. A separate energy manager is not required.

Cybersecurity from SMA: the system runs via the ISO 27001-certified SMA Cloud.

SMA Storage M PV battery – the modular high-voltage storage of the new SMA generation: scalable in modules of around 4.1 kWh each, expandable up to 49.1 kWh per tower. An expansion is possible within two years – the storage grows with you.

Thanks to IP66 protection, the Storage M can also be installed outdoors. The pre-fitted connecting cables are included in the storage package.

On request, the complete system is also available with more or fewer solar panels and with other storage sizes – just get in touch with us.
