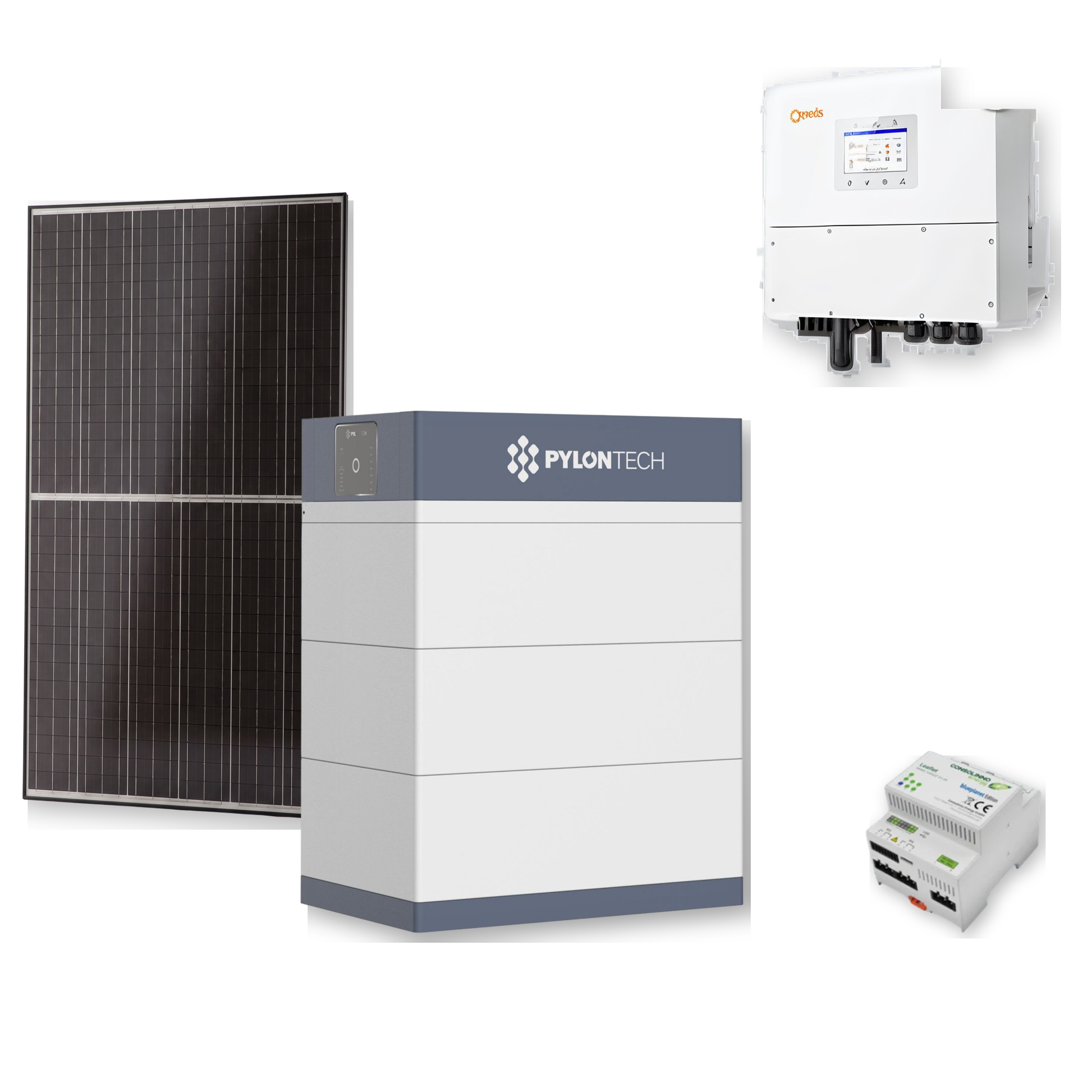

Premium Solar System "4x Tracker" | 13.30 kWp Bifacial Jinko Solar Panels | 12 kW Solis Hybrid Inverter | 15.36 kWh Pylontech FORCE-H3 Battery Storage & Accessories

Premium Solar System "4x Tracker" | 13.30 kWp Bifacial Jinko Solar Panels | 12 kW Solis Hybrid Inverter | 15.36 kWh Pylontech FORCE-H3 Battery Storage & Accessories

Scope of Delivery:

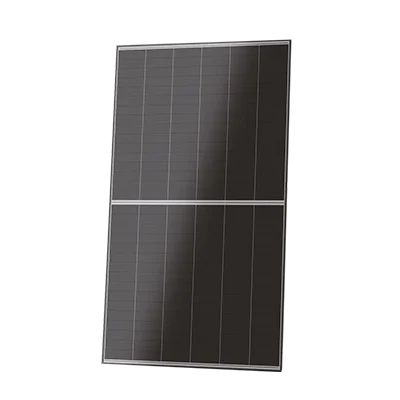

• 28 x Jinko Tiger Neo 3.0 475 Wp | glass-glass solar panel | black frame
• 100 m solar cable 6 mm², black
• 4 x Weidmüller tool-free PV connector pairs for 4-6 mm² for the DC main line

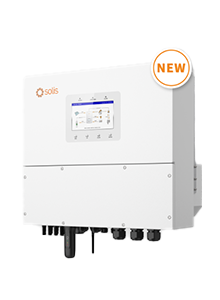

• 1 x Solis hybrid inverter S6-EH3P K-H 12 kW | 3-phase with integrated CT current transformers

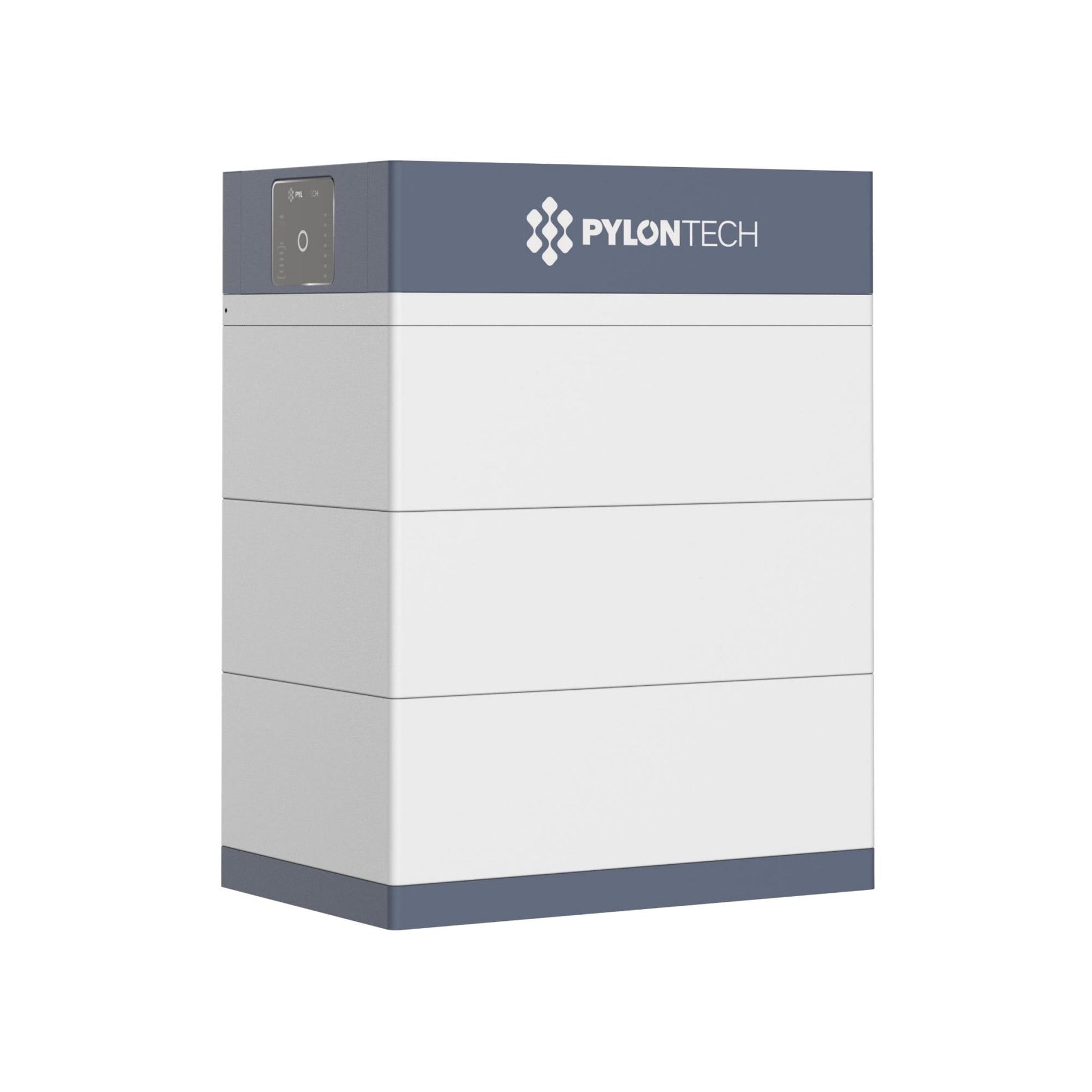

• 1 x Pylontech FORCE H3 high-voltage PV battery storage | 15.36 kWh
• Connection cables from battery storage to hybrid inverter: 2 x power cables 8 AWG and 2 x RJ45 communication cables (included in the FC1000 BMS package)
• Battery modules are connected directly via the Easy Connector plug-in system – no additional cables are required between the modules; the internal RJ45 communication cable is included

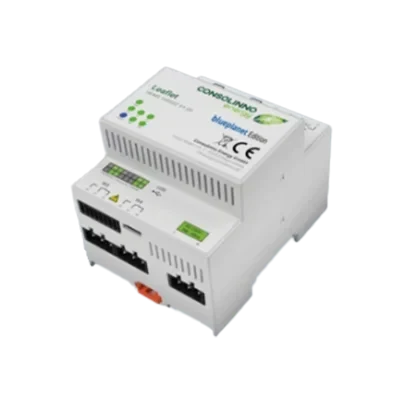

• Consolinno HEMS energy manager

The complete system is also available on request with more or fewer solar panels and with different storage sizes – just get in touch with us.

Note: The connection cables between the battery storage and the inverter are factory-terminated. If the distance between the storage and the inverter is greater, please contact us before ordering.

Your Advantages at a Glance

Premium quality and reliability: High-quality components with numerous features from Solis, Pylontech and Jinko ensure a long service life and consistently high performance.

Solar Panel Highlights

• Leading manufacturer Jinko Solar: One of the largest and most established module manufacturers worldwide, offering reliable quality and long-term warranties.
• Glass-glass technology: Generates additional power from light reflected off the back of the panel, especially on bright or reflective surfaces.
• Robust glass-glass design: Provides high load-bearing capacity under extreme weather conditions and improved fire protection.
• Highly efficient N-type TOPCon solar cells: Guarantees higher energy yield and lower performance losses than standard P-type cells.

Inverter Highlights

• 4 separate MPP trackers: Optimal adaptation to 4 different roof orientations and inclinations, significantly reducing yield losses from partial shading.
• Dynamic tariff optimisation via SolisCloud: Automatic adjustment of battery charging to current spot market electricity prices. The inverter charges the storage at low prices and discharges it specifically at high prices – entirely without manual intervention.
• Integrated peak shaving: Automatically detects and reduces load peaks by using surplus power from the battery storage. This lowers grid costs and improves the use of self-generated electricity.
• 160% PV charging capacity: Surplus PV power can be fed directly into the battery storage even once the maximum feed-in limit has already been reached. This makes maximum use of the energy you generate and increases your self-consumption without any energy loss.

Further Technical Features

• High module current (20 A): Supports the latest high-performance modules with higher currents.
• Parallel connection of up to 6 units: As power demand increases, up to six inverters can be operated in parallel.
• Integrated display: Enables quick and easy monitoring of the system status directly on the device.
• Two separate backup connections: Enable targeted power supply to important loads in the event of a grid outage.
• Easy integration of your heat pump: via the SG-Ready interface for optimised use of surplus PV power. For extended control options, we recommend an additional energy management system.
• 3 integrated CT current transformers: Measure the current flow on each individual phase in real time and provide the same functions as a smart meter.

PV Battery Storage Highlights

• Compact design & weight: Light and space-saving installation, also ideal for tight or difficult mounting locations.
• Flexible storage capacity up to 215 kWh: Thanks to the modular design, each battery tower can be expanded up to 35.8 kWh, and up to 6 towers can be connected in parallel – for an individual, scalable storage solution.
• "Easy Connector" system: An elegant design with no visible cables between the battery modules ensures a tidy, clean installation.
• Reliable storage solution: Pylontech stands out as one of the world's leading manufacturers of battery storage systems, with field-proven storage technology and exceptional longevity.

Accessories & System Components - Thoughtfully Included

• Consolinno HEMS: The Consolinno energy manager (HEMS) is the perfect choice for open systems and the highest control precision. It enables intelligent connection with components from other manufacturers in the smart home and allows continuously variable, finely tuned control – far beyond simple on/off switching. It unfolds its full potential especially with dynamic electricity tariffs, heating systems or the use of surplus PV power. Thanks to its open architecture and high "Made in Germany" data protection standards, the Consolinno HEMS is ideal for anyone who wants maximum flexibility and control over their energy management.
• Weidmüller PV Connectors & 6 mm² Solar Cable: 100 m of high-quality PV cable plus tool-free PV connector pairs for smooth, standard-compliant DC wiring.

Optional Accessories

DC and AC Surge Protection:
To protect against lightning strikes and overvoltage, a standard-compliant surge protection device in accordance with VDE 0100-712 is recommended – on both the DC and AC side. In most cases this is even mandatory. Ideal for new builds and retrofits – compact, effective and standard-compliant.
