Jinko Tiger Neo 3.0 470 Wp | Glass-Glass Solar Panel | Full Black

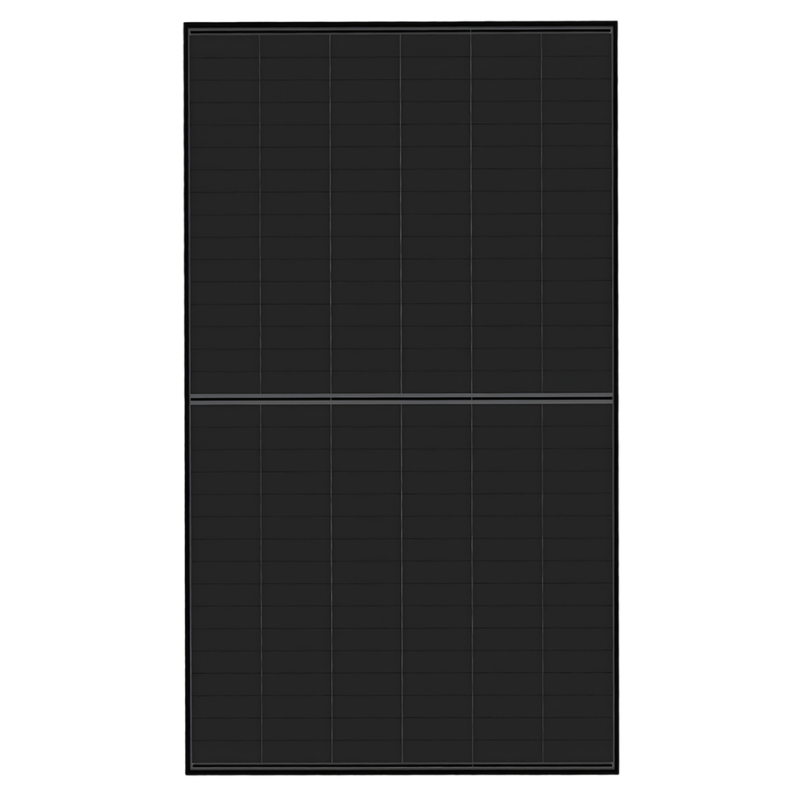

Jinko Tiger Neo 3.0 JKM470N-48QL6-DB 470 Wp I Full-Black Glass-Glass Solar Panel I N-Type TOPCon

Scope of delivery

• Jinko Tiger Neo 3.0 JKM470N-48QL6-DB 470 Wp I Full-Black glass-glass solar panel
• MC4-EVO2-compatible connectors
• Documentation and further accessories

Product highlights

• 470 Wp: leading performance class of the Tiger Neo 3.0 series
• Module efficiency of up to 23.52% thanks to N-type TOPCon cell technology
• Glass-glass construction for high mechanical stability and long service life
• Uniformly black Full-Black design for an unobtrusive roof appearance
• Proven performance even in weak light
• 25-year product warranty and 30-year linear performance warranty
• See the data sheet for further technical specifications

Detailed description Jinko Tiger Neo 3.0 JKM470N-48QL6-DB

The Jinko Tiger Neo 3.0 JKM470N-48QL6-DB combines a uniformly black Full-Black look with the performance of Jinko Solar's latest N-type TOPCon cell generation. The glass-glass design makes it a durable solution for roof systems where both yield and a consistent appearance matter.

Higher output through modern cell technology

With a rated output of 470 Wp and a module efficiency of up to 23.52%, this panel achieves a leading performance class based on the improved N-type TOPCon architecture. An optimized layout captures more sunlight and converts it efficiently into usable energy.

Stable yields even in difficult light conditions

An improved cell structure ensures superior module performance under weak light conditions. This has a particularly positive effect on the overall system yield on cloudy days and during the early morning and evening hours.

Robust glass-glass construction with optimized heat resistance

Advanced graphical structuring together with modern busbar and multi-cell technology provide an optimized temperature coefficient. The panel is certified to withstand a maximum static test load of 6,000 Pa on the front and 4,000 Pa on the rear, making it suitable even for demanding roof situations. Advanced metallization and module encapsulation also provide superior resistance to PID, LID/LeTID and UV degradation.

Long-term protection for your investment

Jinko Solar provides a 25-year product warranty and a 30-year linear performance warranty with only 0.35% annual degradation. After 30 years of operation, at least 88.85% of the original rated output is still guaranteed – a reliable figure for yield calculations over the entire system lifetime.
