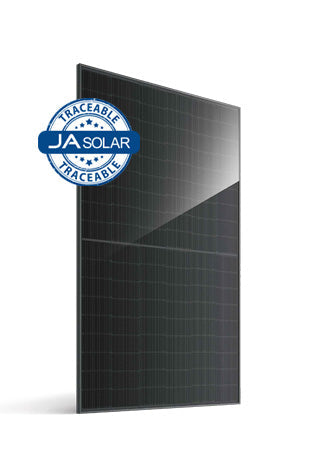

JA Solar 460 Wp | Glass-Glass Solar Panel | Full-Black

JA Solar JAM54D41 460 Wp I Full-Black Glass-Glass Solar Panel I N-Type n-Bycium+

Scope of delivery

• JA Solar JAM54D41 460 Wp I Full-Black glass-glass solar panel
• MC4-compatible connectors
• Documentation and further accessories

Product highlights

• 460 Wp: strong output on a compact panel area
• Module efficiency of up to 23.0% thanks to n-Bycium+ cell technology
• Double-glass construction for high mechanical stability and long service life
• N-type cells with low light-induced degradation (LID)
• Improved low-light behavior for stable yields even in diffuse light
• 25-year product warranty and 30-year linear performance warranty
• See the data sheet for further technical specifications

Detailed description JA Solar JAM54D41-460/LR

The JA Solar JAM54D41 460 Wp solar panel combines a uniformly black Full-Black look with the reliability of one of the world's largest panel manufacturers. The double-glass design makes it a durable solution for roof systems where both yield and a consistent appearance matter.

High output thanks to modern cell technology

With a rated output of 460 Wp and a module efficiency of up to 23.0%, the panel converts a large share of sunlight into usable energy. The n-Bycium+ cells with MBB half-cell technology deliver increased power generation while reducing degradation over the service life.

Stable yields even in unfavorable light conditions

The N-type cells used show significantly improved low-light behavior compared with conventional P-type cells. This has a particularly positive effect on the overall system yield on cloudy days and during the early morning and evening hours.

Robust double-glass construction

Two 1.6 mm-thick glass panes enclose the cells and protect them from mechanical stress, moisture and weathering. The panel withstands snow loads of up to 5,400 Pa and wind loads of up to 2,400 Pa, making it suitable even for demanding roof situations.

Long-term protection for your investment

JA Solar provides a 25-year product warranty and a 30-year linear performance warranty on the panel. After 30 years of operation, at least 87.4% of the original rated output is still guaranteed – a reliable figure for yield calculations over the entire system lifetime.
