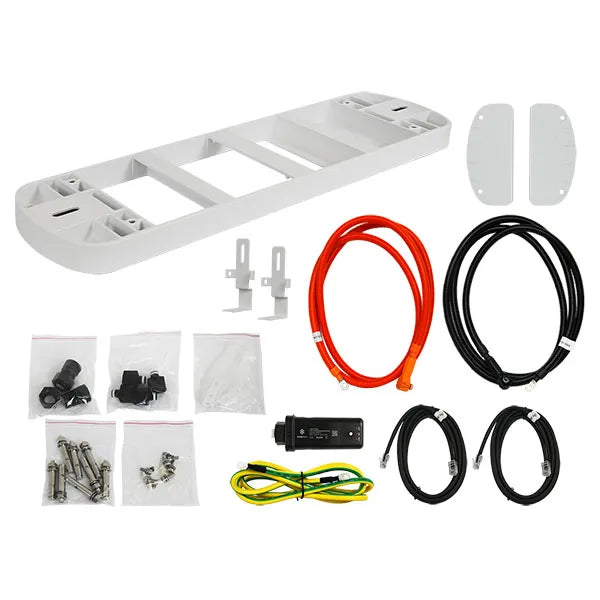

Installation Packages for Pylontech Pelio-L-5.12 PV Storage

Product Advantages and Technical Details - Pylontech Pelio-L-5.12

• The further-developed alternative to the popular US series with impressive features that even surpass the US series
• With 95% DoD, one of the highest depths of discharge on the market
• Innovative design: ultra-slim & extremely lightweight | outstandingly high energy density per module
• BMS already built in
• Versatile installation: no battery cabinet required | can be installed outdoors thanks to IP65 protection rating | weatherproof
• Robust with white steel surface
• Wide operating range: PV storage charges between 0°C/50°C and discharges between -10°C/50°C
• Easy setup & expansion thanks to modular design and use of cables

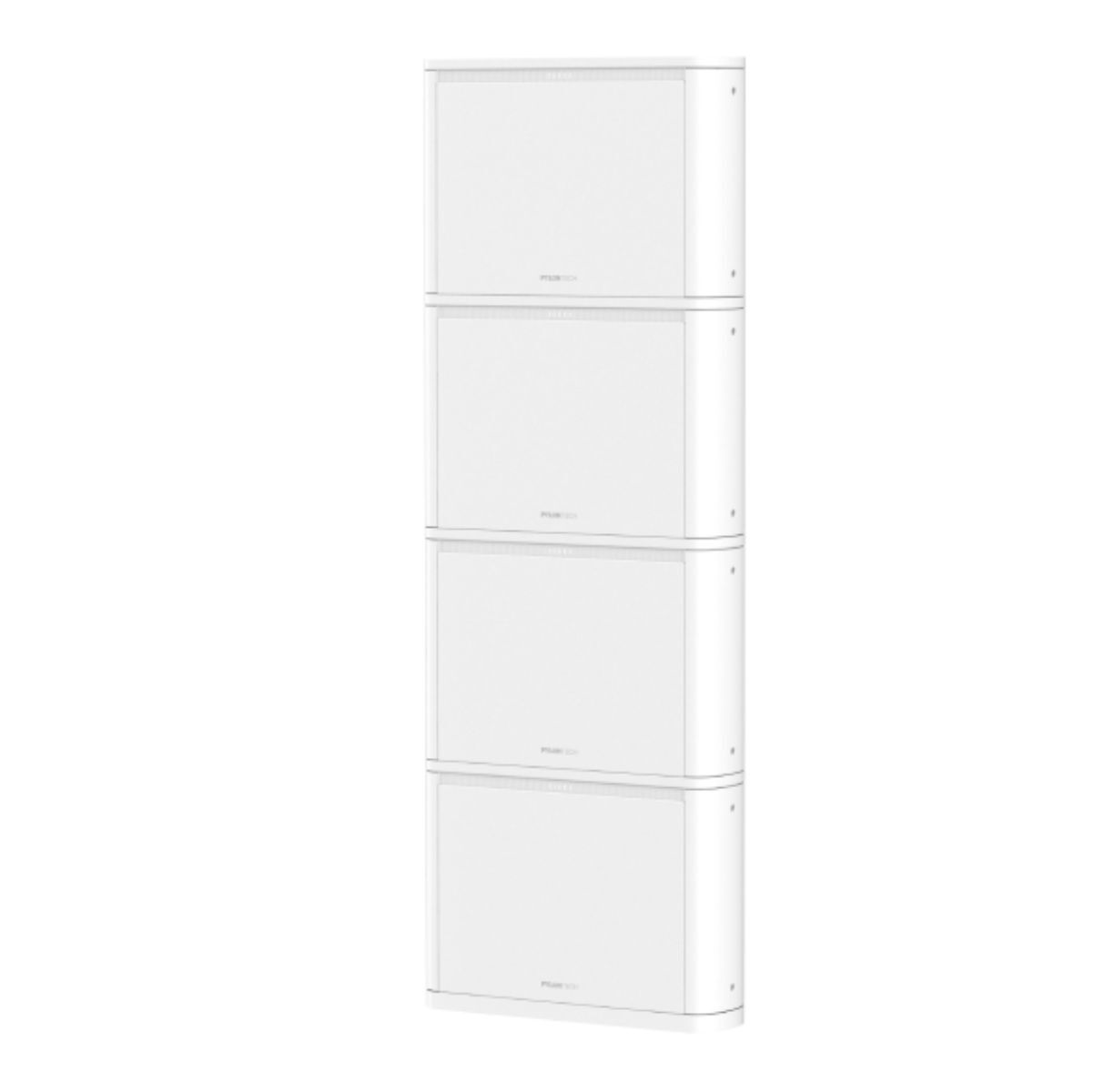

• 4 modules per tower (20.48 kWh) & up to 5 towers in parallel (up to 102.4 kWh)
• 24/7 monitoring: online system updates & maintenance, as well as monitoring | real-time monitoring of energy production and energy consumption
• With numerous additional protective functions for safe and trouble-free operation, including:
  • Soft-start function to protect against voltage surges and to reduce the current surge when the inverter is started from the battery
  • Gradual increase of current supply when the battery is switched on, to prevent damage caused by sudden voltage spikes
• Particularly durable with > 6000 cycles
• Compatible with most available hybrid inverters (compatibility list with over 30 brands, including Victron Energy, Solis, GoodWe, Sungrow and many more, available under Downloads)
• Recommended charge/discharge current: 80 A per PV storage module
• Max. charge/discharge current: 100 – 120 A for 15 min
• Peak charge/discharge current: 120 – 200 A for 15 sec
